Intel® Core Ultra CPU: Meteor Lake-H
2*DDR5-5600 SO-DIMM Max. 96GB
1*M.2 Key-M PCIeX4 NVME高速存储
2*DP+1*HDMI+1*Micro HDMI四独立显示
2 * 2.5G LAN，2*USB3.2, 2*USB3.0, 1*Type-C，
2*COM, 1*MIC+1*Line-out
1*M.2 B-key和1*M.2 E-key支持5G NR和WIFI6
DC-IN 12V供电，过压过流短路保护设计

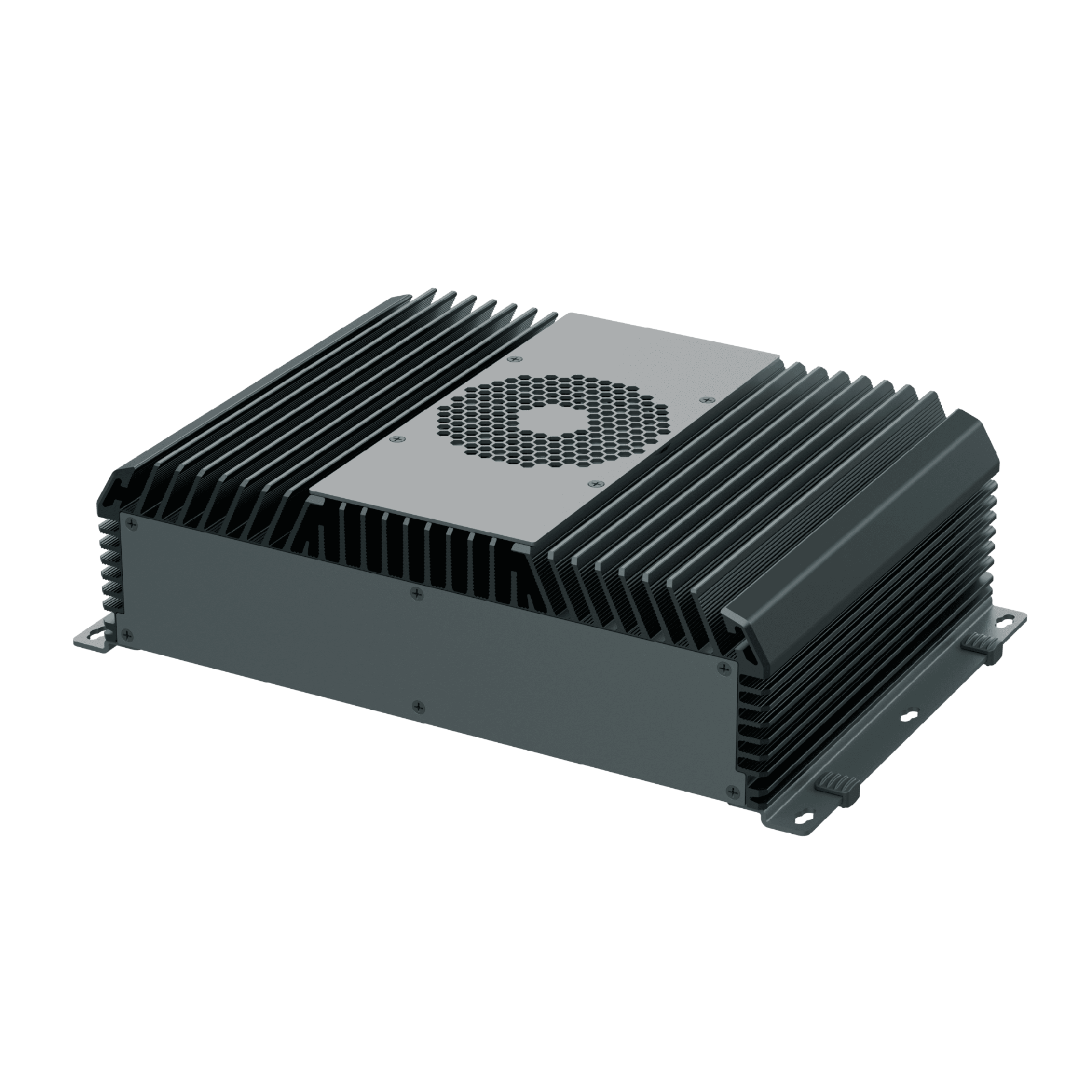

铝型材外壳, 主被动相结合散热设计
支持-20~65℃工业级宽温工作
| CPU | Intel® Core™ Ultra processors (Serials 1), Meteor Lake-H: Ultra 5 135H, Ultra 7 155H或Ultra 9 185H |
| 内存 | Support DDR5-5600 MHz, 2 * SO-DIMM Slot, up to 96GB |
| 扩展接口 | 1 * M.2 Key-B Slot (USB3.0+PCIE+USB2.0, Support 4G/5G, 2280) 1 * M.2 Key-E Slot (PCIE+USB2.0, Support Wifi +BlueTooth , 2230) 1 * Nano SIM Card Slot 1 * MIPI-CSI Connector |
| 显示 | 1 * HDMI2.1 (TYPE-A): max resolution up to 7680×4320@30Hz 1 * DP2.0 (Down Port): max resolution up to 15360x8640@60Hz 1 * DP1.4 (Up Port): max resolution up to 7680×4320@30Hz 1 * Micro HDMI IN (HDMI to MIPI CSI): max resolution up to 4096x2160@60Hz |
| 音频 | 1 * Line-Out +1*MIC |
| 以太网 | 2 * Intel® 2.5G LAN Chip (RJ45,10/100/1000/2500 Mbps) |
| 存储 | 2* SATA3.0 7P Port (with SATA Power Wafer) 1 * M.2 Key-M Slot (PCIE 4x Gen4, Support PCIE X4 NVMe, 2280) |

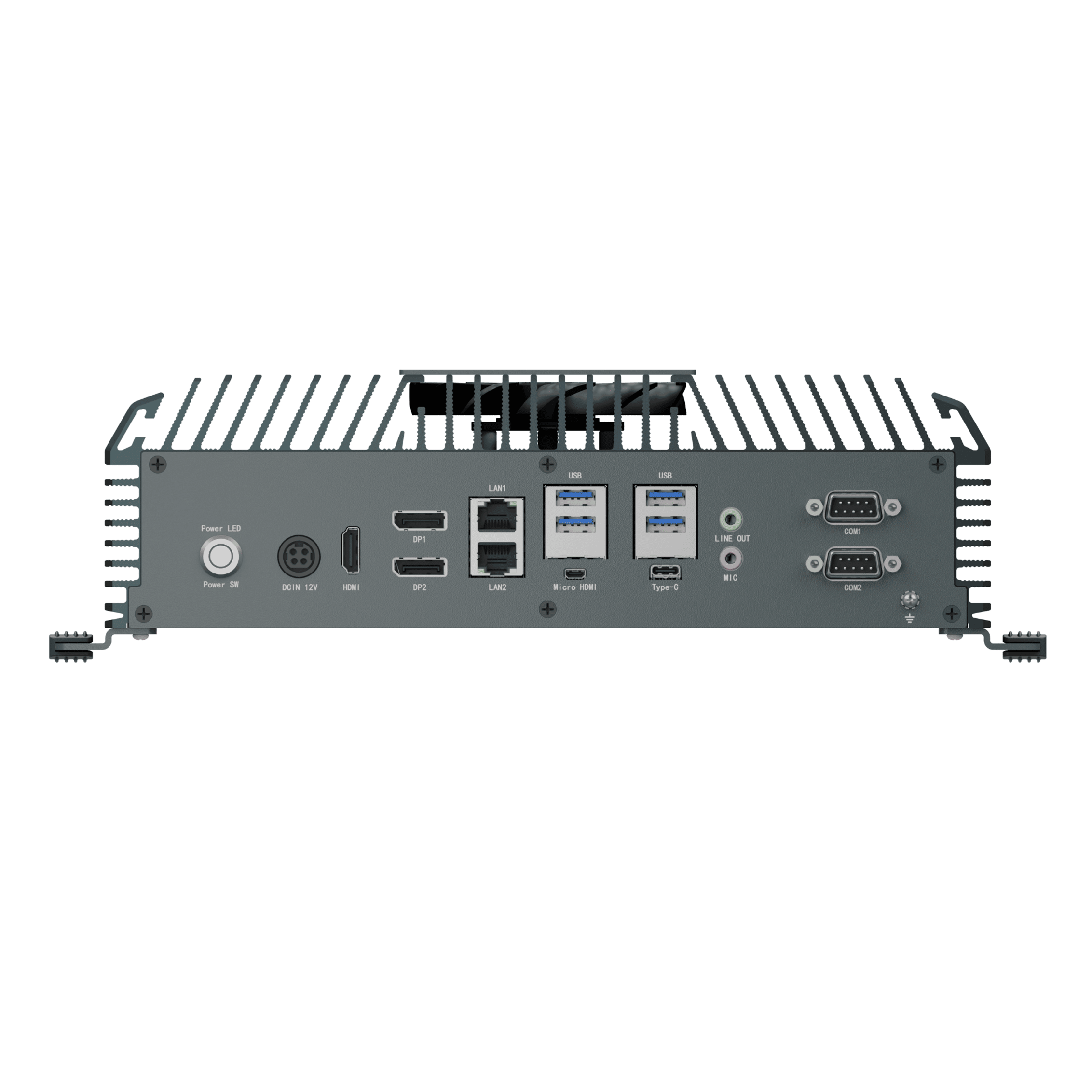

| IO接口 | Rear IO：2*RJ45; 1*HDMI+2DP+1Micro HDMI ; 2*USB3.2(Type A)+2*USB3.0 (Type A)+1*Type-C; 1*RS232（COM1）+1*RS485（COM2）；1*MIC+1Line-out |
| 控制开关 | 1* Power按键 with LED |
| 电源要求 | DC 12v/10A输入 |
| 操作系统 | Windows 10/11 64-bit, Linux |
| 构造 | 铝型材散热外壳，SGCC箱体 |
| 颜色 | 花岗灰 |
| 安装方式 | 桌面式安装带减震防滑脚垫 |

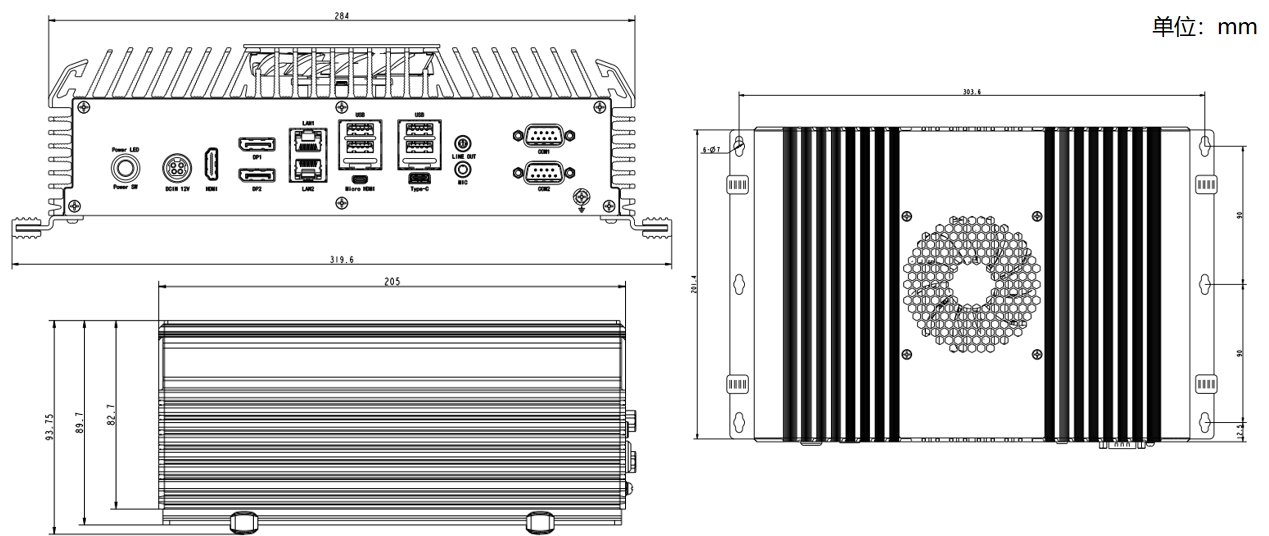

| 尺寸 | (L*W*H)：主箱体：284*205*90mm；含安装支架：320*205*94mm |
| 工作温度 | -20℃～65℃，空气流动 |
| 存储温度 | -20°C~75°C |
